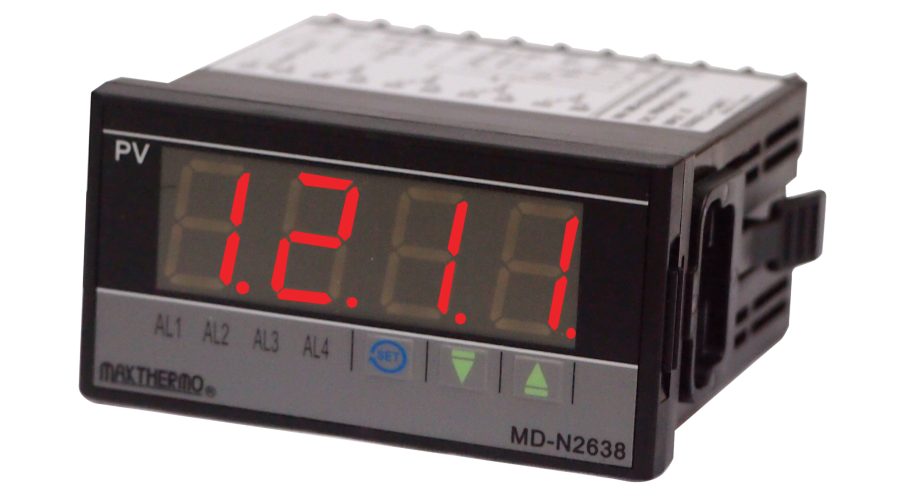

Digital Panel Meter

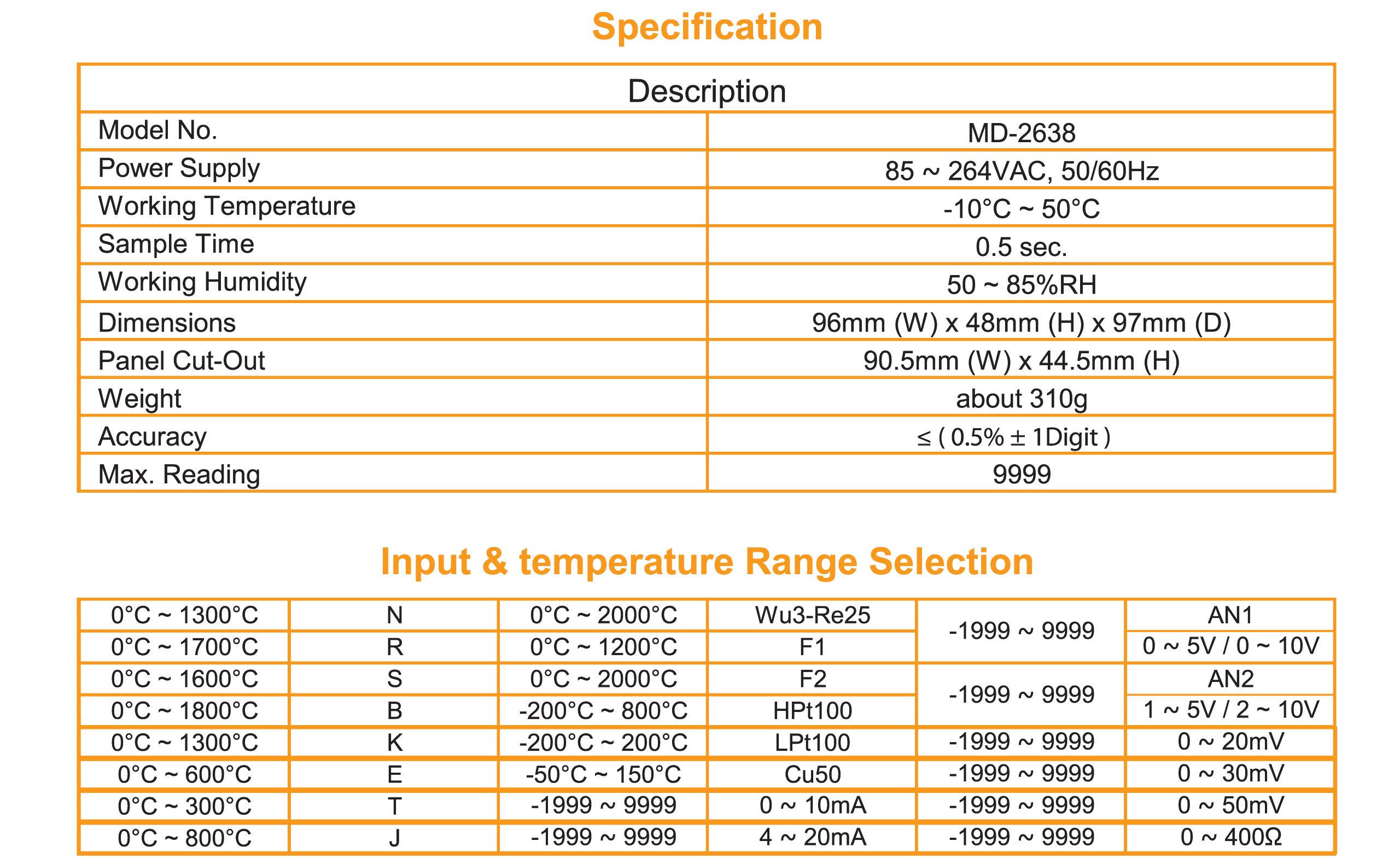

MAXTHERMO Model : MD -N2638

Features :

• Available for temperature, humidity, pressure, flow, ampere, voltage indicator.
• Muti input R, S, B, K, E, T, J, W, N, Pt100, Cu50 and linear analogue 4-20mA,
• 0-5V, 0-20mV, 0-50mV etc. can be selected by user.
• With maximum 4 alarms which can be set as low/low, low, high, high/high alarm.
• 0.8″ LED display makes clear reading.
• With 3 decimal for analogue input which is most suitable to use in precision equipment.
• Display for over range and below range.

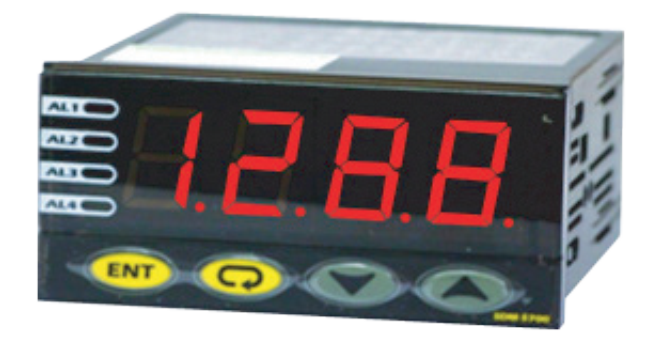

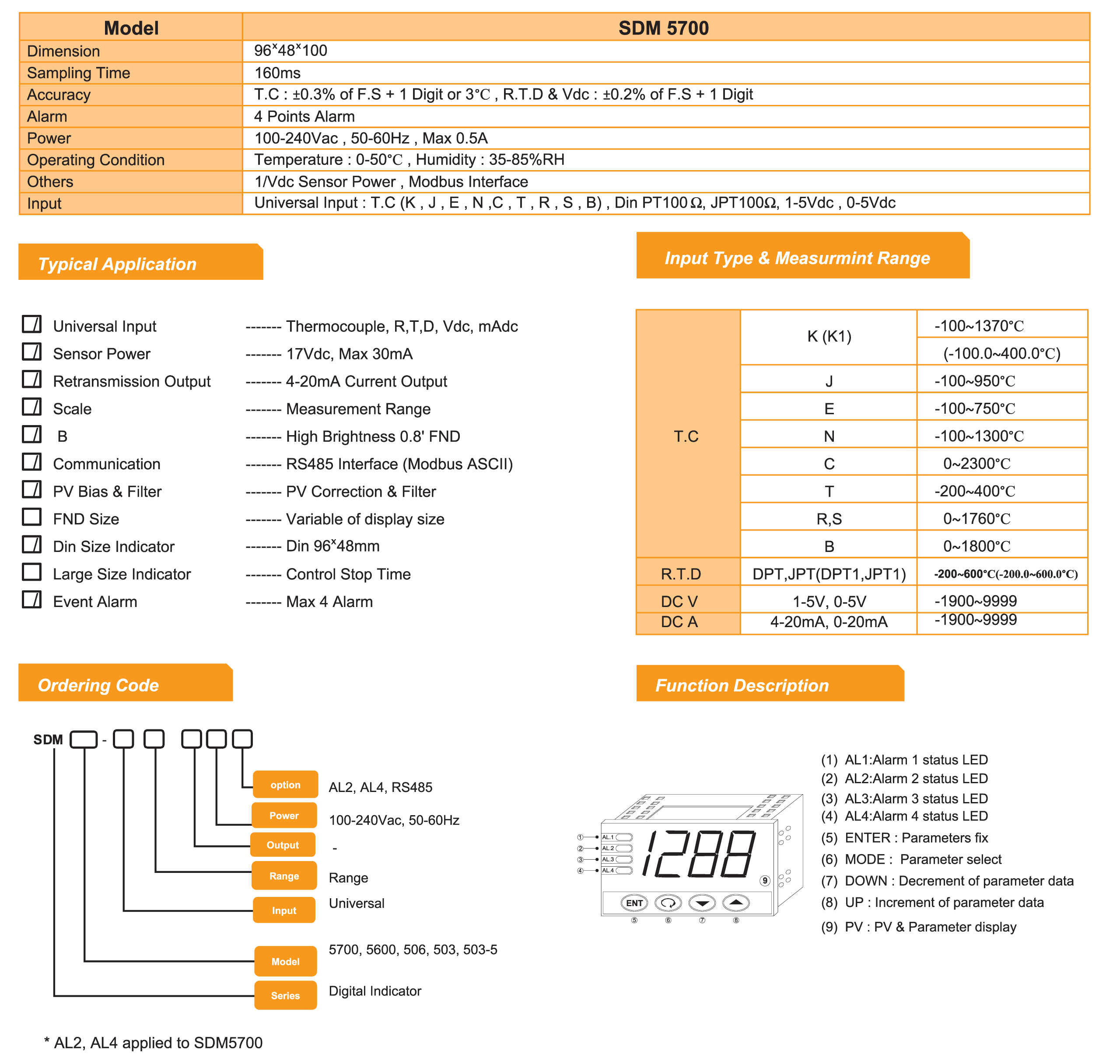

Digital Indicator

Model : SDM 5700

Features

• Multifuncitional Digital indicator
• Universal input & full scale range
• Individual 2 point alarm (Max 4 point alarm)
• PV display by communication
• RS485 interface (Modbus ASCII)
• Sensor Power supply (17Vdc, Max 200mA)
• Retransmission output (PV)
• High brightness display FND
• PV peak hold
