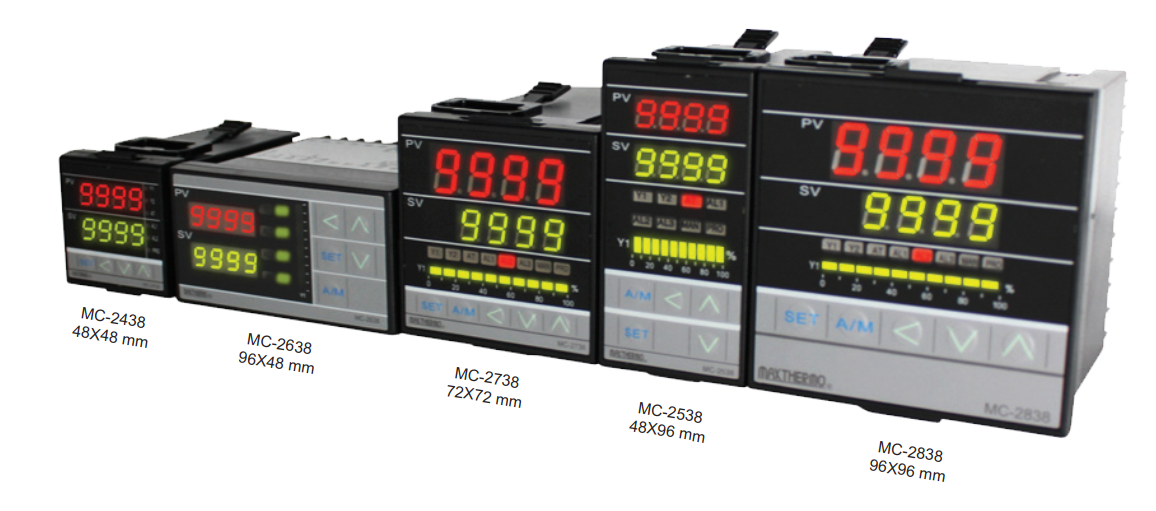

PID Temperature Controller

Features

PID auto tuning
Two PID control processes, with two individual outputs.
Multi range input (TC,RTD,mV), each 14 BIT resolution.
Relay output, SSR drive, 4-20mA changeable by a module.
Three-point alarm, with 19 alarm modes.
Non-Volatile memory.
Self-diagnosis function.
Auto zero and auto Span circuit keep good accuracy.
Free range voltage from AC 85V-265V or 24VDC.
Data lock function.
Input 2 can be used in Remote SV.
Optional transmitter output.
With output percentage control, if sensor broken the controller automatically
convert to manual operation to be controlled by heating power with output
percentage.
Standard type with 1 ramp and 1 sock available or 2 patterns each 8 segments
programming procedure.
RS232 or RS485 is available for remote monitoring.
